Tuesday, 11 September 2012

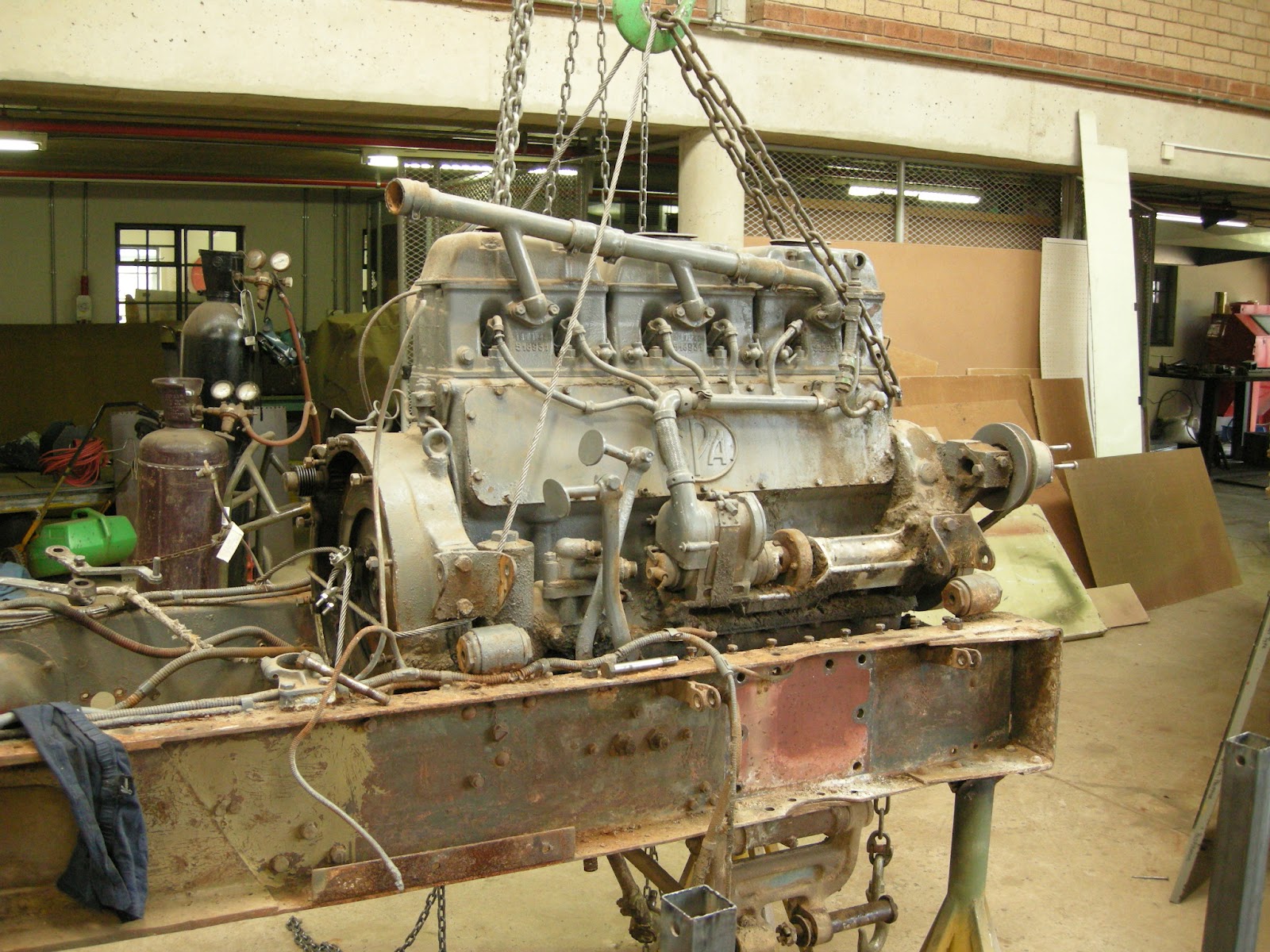

To continue, the engine is carfully lifted out of it's mountings.
Winching it out.
Right hand side view of the engine.
Another view.

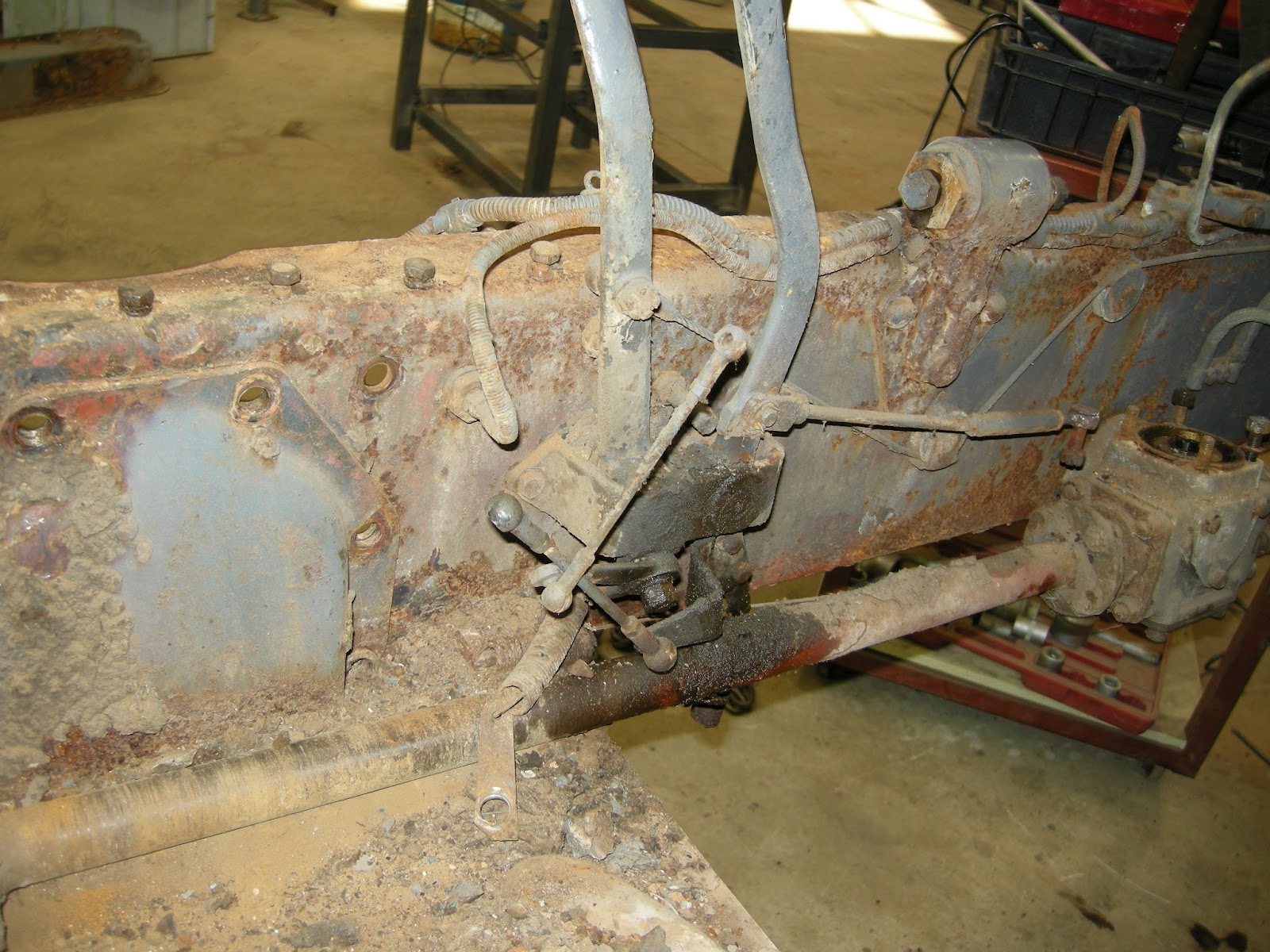

With the engine removed some more of the old dirt becomes visible. This is one of the steering boxes also to be seen are various linkages and connections.
The second drivers pedal cluster with associated linkages.
The pedal cluster from another angle.
The engine has been safely placed in the purpose built stand.
Front view, the mounting points for the two fans can be seen on either side of the casing.
With the pully and casing removed one can see the timing chain.
